The Right Curl Makes All the Difference: A Beginner's Guide to Steel Drum Rolling Machines

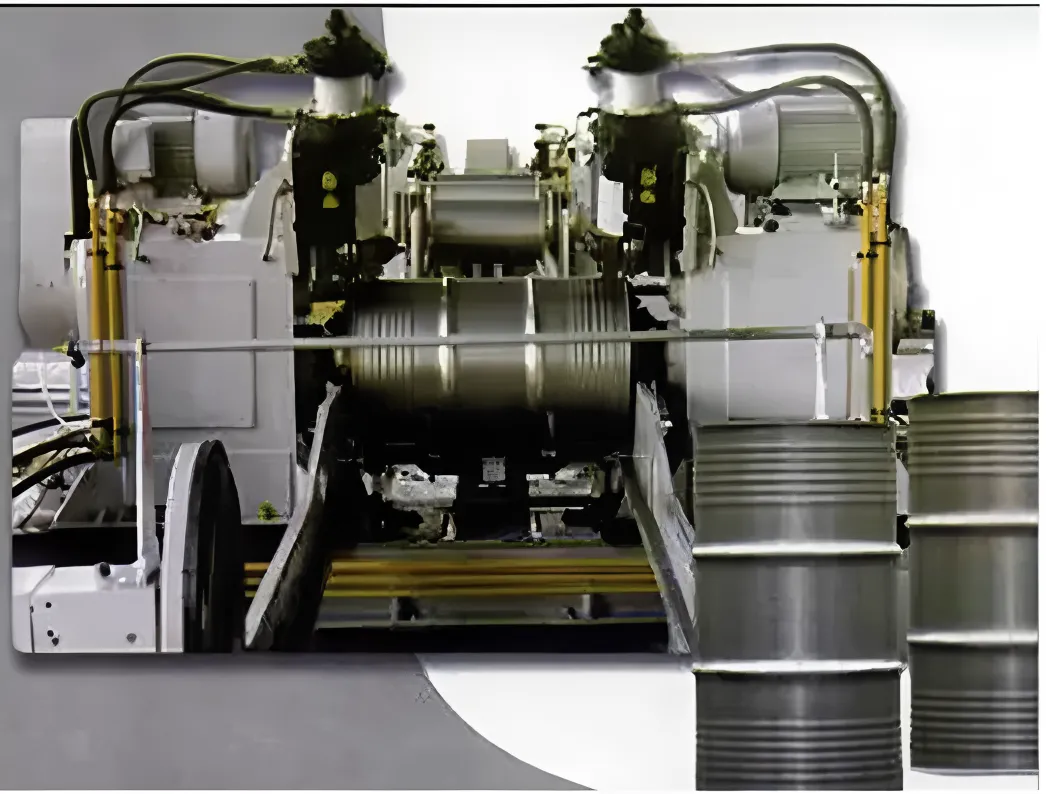

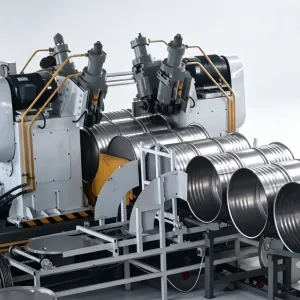

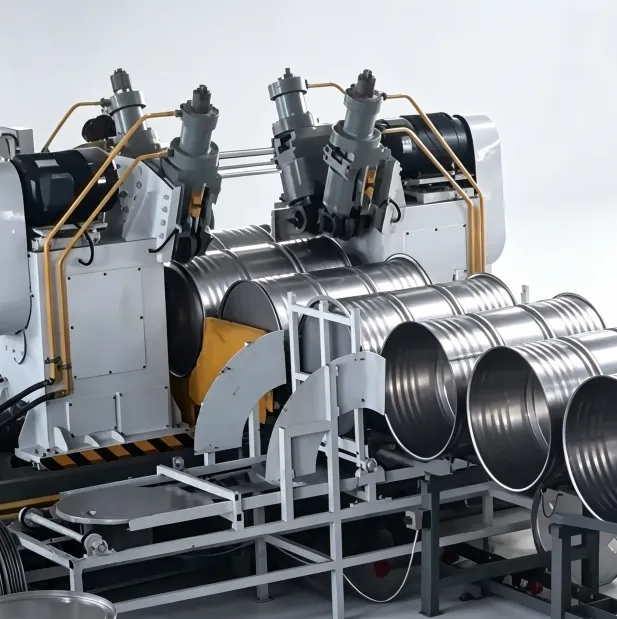

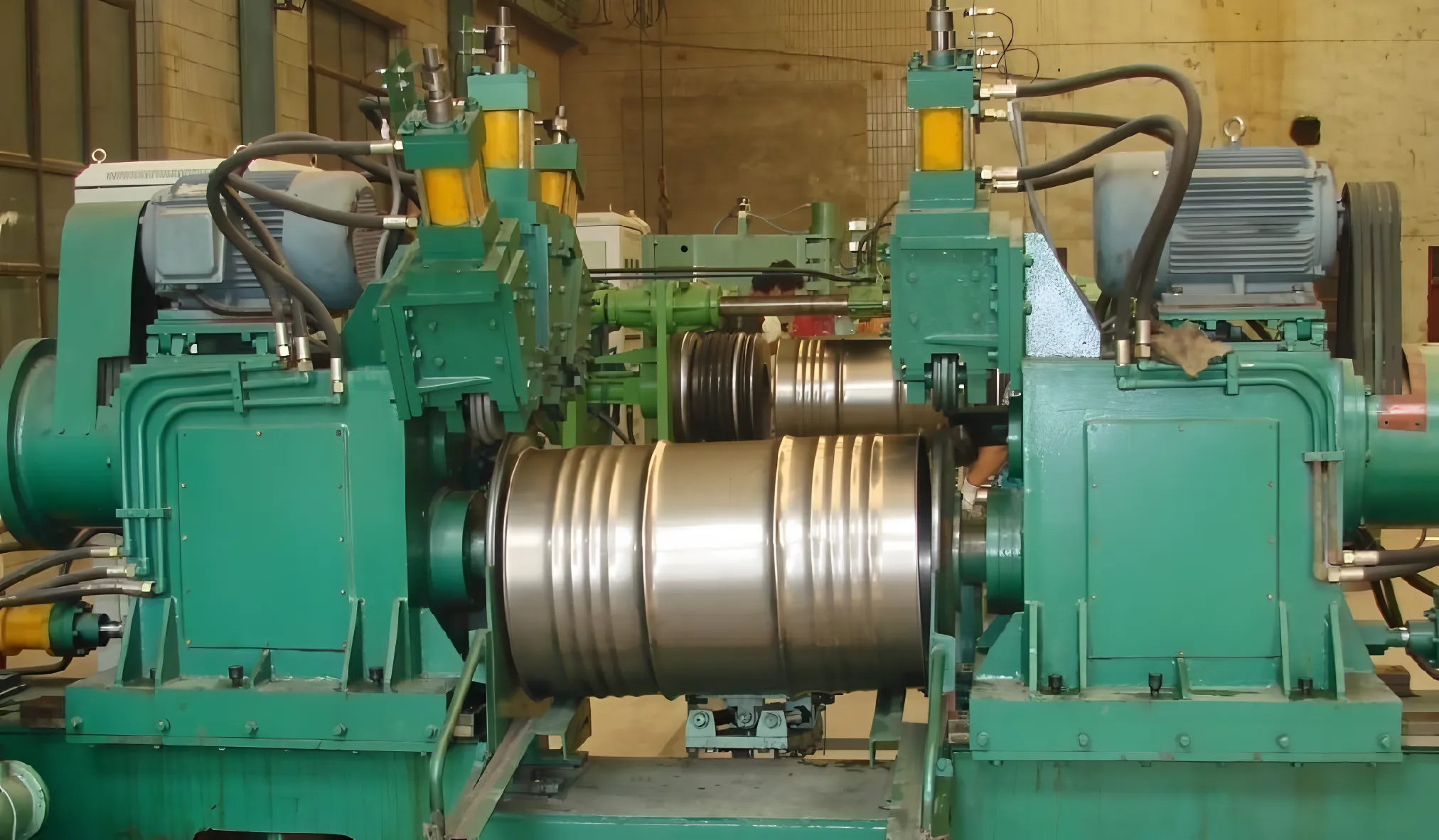

I remember watching a Steel Drum Production Line for the first time. I was surprised how a flat sheet of steel could become a

round drum body in just a few seconds. The machine that does this is called a **steel drum rolling machine**, or sometimes

a curling machine.

It works like a metal dough roller. You feed a flat steel sheet into the machine, and it passes through three rollers arranged in

a triangle. The two bottom rollers pull the sheet through, while the top roller presses down to bend it into a cylinder shape.

If the top roller is positioned just right, the edges of the sheet meet perfectly, ready for welding.

When you're looking for a Plate rolling machine, you'll quickly find that different models are suited for different purposes.

The key specification is the **workpiece thickness**. If you're making standard steel drums, you'll usually be working with

steel sheets between 0.8mm and 1.2mm thick . Some heavier-duty steel sheet rolling machines can handle thicker material,

up to 3.5mm or even 6mm, but for standard 55-gallon drums, a machine that handles up to 1.5mm is usually plenty .

Another thing to watch is the **workpiece diameter** and **length** the machine can handle. For a 55-gallon drum (about

216.5 liters), the body diameter is roughly 571.5mm. Make sure your rolling machine can handle diameters in that range and

the sheet length you'll be using .

Here's a practical tip from my time in the industry: if you're setting up a new line, consider a rolling machine that can

integrate with your welder. Some manufacturers offer a combined rolling and welding station where the sheet is rolled into

a cylinder and then immediately seam-welded in one continuous flow . This saves floor space, reduces handling, and makes

your production line run much smoother.

A quick maintenance tip: keep the rollers well-lubricated. The steel sheet rolling process puts a lot of stress on the rollers,

and they need lubrication to prevent excessive wear. Check your machine's manual for the recommended lubrication

schedule and stick to it.

Whether you're upgrading your current line or setting up a new one, a well-chosen steel drum rolling machine makes all the

difference. Once you find a machine that matches your steel thickness and drum size requirements, you'll be turning flat

steel into perfect cylinders in no time.
