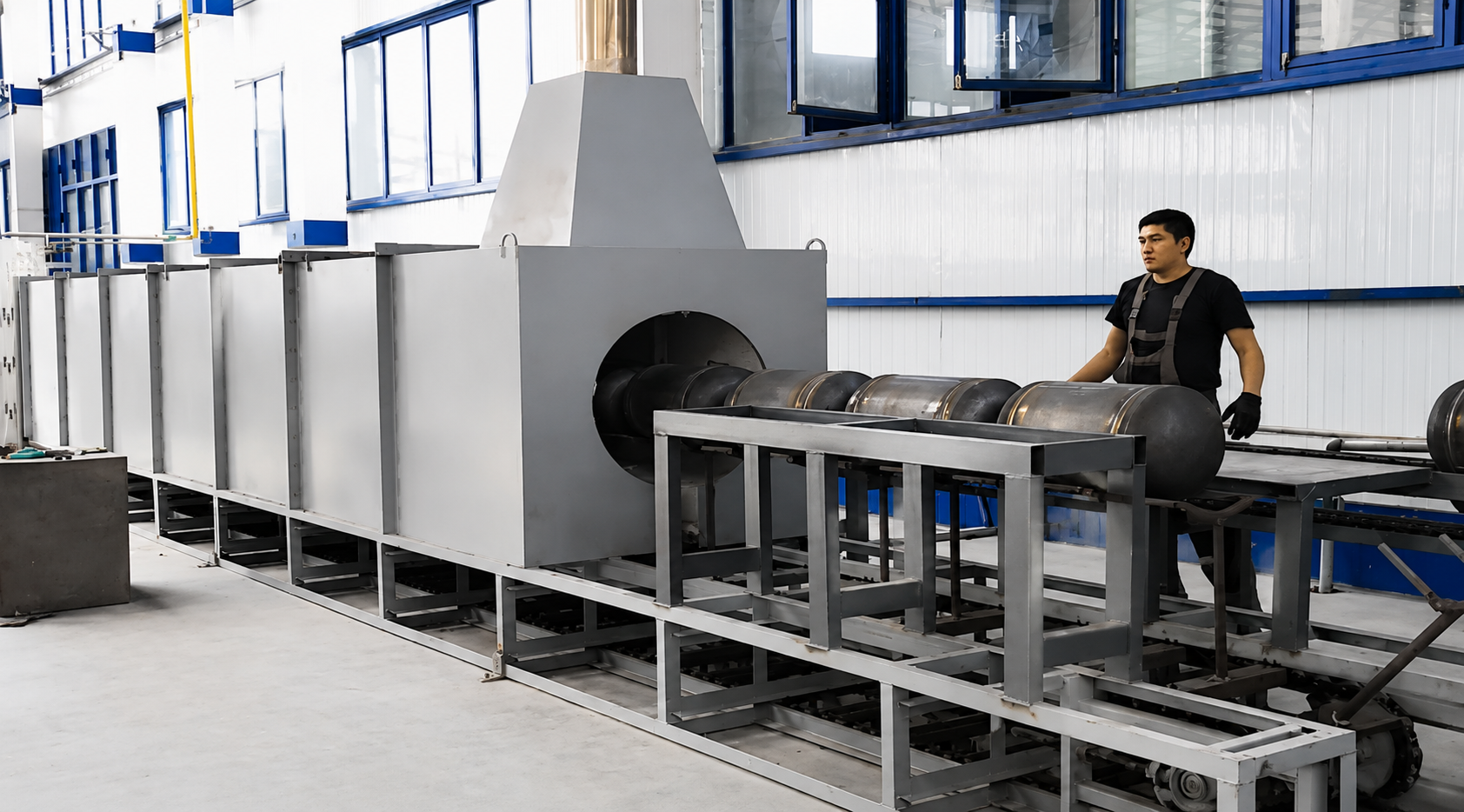

This heat treatment furnace is used for stress relieving by normalizing, adopt LPG, Nature gas fuel oil as heat source, auto ignition, automatically control temperature, record with paper or without paper. Furnace length and burners quantity are according to daily production.
| Chain-Conveyor Annealing Furnace for LPG Cylinders | (Reference: Model DB-YTH-A, etc.) |
| Parameter Name | Technical Specifications |
| Applicable Workpieces | 10–15 kg LPG cylinders, welded gas cylinders |
| Design Output | 180–250 cylinders/hour (maximum) |
| Process Temperature | 650–720°C (stable control) |
| Fuel Type | Natural gas (8,500 kcal/Nm³) |
| Thermal Load | Approx. 743,750 kcal/h |
| Burner Configuration | 6 × 150,000 kcal/h high-speed burners; three-zone pulse control |
| Energy Consumption per Cylinder | ≤ 0.30 Nm³/cylinder |
| Furnace Module Dimensions | 2,500 × 1,250 × 1,450 mm/section; inner opening 650 mm |
| Drive System | Variable-frequency cycloidal pin-wheel reducer + high-temperature resistant chain/sprocket (rated for 600°C) + Φ22 stainless steel supports |
| Temperature Control Zones | Preheating zone, heating zone, cooling zone (three zones) |
| Temperature Control Precision | ≤ ±5°C |
| Safety Features | Power-loss gas line quick-shutoff valve, branch-end vent/purge, over-temperature alarm |
| Control Method | PLC (Siemens) + HMI touchscreen + independent temperature controller for manual backup |
If you manufacture or refurbish pressure gas cylinders, you already know heat treatment is not an optional step—it is the core process that decides whether your cylinders pass global safety standards. From everyday LPG tanks to medical oxygen cylinders and industrial high-pressure gas vessels, every metal gas cylinder needs precise thermal processing to eliminate hidden structural risks. This is exactly what our gas cylinder heat treatment furnace is designed for.
Unlike general industrial heating furnaces that work for random metal parts, our dedicated gas cylinder heat treatment furnace is fully customized for cylindrical pressure vessels. It supports all mainstream thermal processes including gas cylinder annealing, normalizing, tempering, and stress relief heat treatment. Whether you produce new steel cylinders or reprocess old cylinders for recertification, this equipment delivers consistent, stable heating results that ordinary furnaces cannot match.
Many factory owners make the mistake of using universal metal heat treatment ovens for cylinder production. These generic devices cause uneven heating, residual internal stress, and easy cylinder deformation, leading to high rejection rates and failed safety inspections. Our professional gas cylinder heat treatment furnace solves these pain points perfectly, focusing solely on the structural characteristics and safety requirements of pressure gas cylinders.
I will explain the working principle in simple terms, no complicated professional jargon. The whole goal of cylinder heat treatment is very straightforward: fix the internal metal flaws left during cylinder stamping, welding, and stretching.
When a gas cylinder is produced through forging, deep drawing and welding, its internal metal structure becomes messy and unbalanced. This hidden internal stress will cause cylinder deformation, cracking or air leakage after long-term use, especially under high-pressure working conditions. Our gas cylinder heat treatment furnace works by heating the cylinder to a preset safe temperature, keeping it at that temperature for a fixed period, then cooling it down slowly and evenly.
This thermal cycle allows the chaotic metal grains inside the cylinder to rearrange evenly, completely releasing residual stress and stabilizing the overall structure. For different cylinder materials—carbon steel, stainless steel and aluminum alloy—we adjust the heating temperature, holding time and cooling speed precisely. Carbon steel LPG cylinders usually need normalizing treatment, while high-pressure industrial cylinders require strict tempering and stress relief annealing.
Our mainstream continuous gas cylinder heat treatment furnace adopts automated roller transmission and multi-zone temperature control. Cylinders automatically enter the preheating zone, high-temperature constant temperature zone and slow cooling zone in sequence. The whole process runs uninterrupted, avoiding manual operation errors and temperature fluctuations in batch processing. We also provide batch-type trolley furnaces for small-batch cylinder processing and refurbishment scenarios.
After years of manufacturing and on-site optimization, our gas cylinder heat treatment furnace has formed obvious advantages in stability, efficiency and energy saving. Every feature is tailored to the actual production needs of cylinder factories.
First, ultra-precise temperature control. We adopt multi-zone closed-loop temperature adjustment with high-sensitivity thermocouple real-time feedback. The internal furnace temperature fluctuation is controlled within ±5°C, far more stable than ordinary industrial furnaces. This ensures every cylinder in the furnace receives the same thermal treatment, eliminating batch quality differences. Uniform heating also avoids local overheating that causes metal brittleness and cylinder wall thinning.
Second, excellent energy-saving performance. Our furnace is equipped with high-alumina refractory lining and aluminum silicate fiber insulation layers, which greatly reduce heat loss. The induction heating model has a power factor above 96%, with automatic impedance adjustment to stabilize power output. Compared with traditional open-type furnaces, it reduces gas or power consumption by 25% to 30%, cutting long-term production costs significantly for factories.
Third, fully automated operation. The complete production line supports automatic cylinder loading, alignment, heating, constant temperature preservation, slow cooling and unloading. One worker can supervise the entire production line, greatly reducing labor costs. The system records all heating data in real time, which can be exported for product quality traceability and factory certification audits.
Fourth, wide compatibility. Our equipment can process gas cylinders with a thickness of 0.15mm to 8mm and a maximum width of 3000mm, covering LPG cylinders, medical gas cylinders, industrial high-pressure cylinders and aluminum alloy cylinders. It adapts to normalizing, annealing and tempering processes of various metal materials without replacing core components.
Many old-fashioned cylinder furnaces on the market still use single-zone heating and fast natural cooling. These outdated structures lead to two common problems: unremoved residual stress and cylinder oval deformation. Our upgraded gas cylinder heat treatment furnace completely solves these industry pain points with targeted technical upgrades.
We adopt segmented temperature control and staged cooling technology. Different heating parameters are set for the cylinder body, welding seam and cylinder bottom to ensure overall stress release consistency. Slow gradient cooling prevents new stress generated by rapid temperature drop, making the cylinder wall hardness and tensile strength reach uniform standard values. After treatment, the cylinder has no flat ends, no welding seam cracks and no surface deformation.
In terms of safety protection, our furnace has built-in short-circuit protection, overheat protection and air tightness detection systems. The electrical control system fully complies with international industrial standards, supporting 24-hour uninterrupted stable operation. For high-standard mirror surface and coated cylinders, our flexible circulating hot air heating mode avoids surface scratching, oxidation and decarburization, maintaining the original surface quality of workpieces.
In terms of production efficiency, our continuous gas cylinder heat treatment furnace supports mass uninterrupted production. The daily processing capacity per equipment ranges from hundreds to thousands of cylinders, perfectly matching the fast production rhythm of large-scale cylinder factories. Small-batch trolley-type furnaces also meet the flexible processing needs of small factories and cylinder refurbishment plants.
As a professional furnace manufacturer focusing on pressure vessel thermal processing equipment for more than a decade, we never adopt unified general production standards. Every gas cylinder heat treatment furnace is manufactured according to actual customer production needs and international safety codes such as ISO 9809 and ASME.
In the early production stage, we select thickened carbon steel plates and high-purity refractory materials for the furnace body. The furnace lining uses multi-layer composite insulation structure, which has low heat storage and low heat loss, ensuring long-term stable high-temperature operation without deformation. All high-temperature burners and heating components are tested for continuous thermal cycling before assembly to eliminate early failure risks.
During equipment assembly, we conduct strict air tightness testing, circuit safety testing and temperature uniformity calibration. Every finished furnace must pass 72-hour continuous load test operation. We adjust the heating curve, cooling rate and temperature holding parameters repeatedly according to different cylinder specifications to ensure the equipment can adapt to various production conditions.
Before delivery, we provide complete parameter reports, temperature calibration data and operation manuals. We also support on-site installation debugging and worker operation training, ensuring the equipment can be put into formal mass production quickly after arriving at the customer's factory.
Our gas cylinder heat treatment furnace serves almost all scenarios related to gas cylinder production and safety re-inspection, with extremely high industry applicability.
In the civil industry, it is widely used for heat treatment of household LPG cylinders of 6kg to 50kg, solving the deformation and stress problems of stamping and welded cylinders, ensuring safe use of household gas equipment. In the medical industry, it processes medical oxygen cylinders and nitrogen cylinders, meeting the high-purity and high-safety standards of medical pressure vessels.
In the industrial field, our equipment adapts to high-pressure hydrogen cylinders, industrial argon cylinders and mixed gas cylinders, improving the pressure resistance and fatigue resistance of cylinders. It is also suitable for new energy hydrogen storage cylinder production, supporting the thermal processing needs of emerging clean energy pressure vessels.
In addition to new cylinder manufacturing, our furnace is also ideal for gas cylinder refurbishment and recertification factories. After years of use, old cylinders need stress relief annealing and surface renovation heat treatment to pass safety re-inspection and extend service life. Many professional cylinder inspection institutions have been using our equipment for a long time due to its stable and reliable processing quality.
I believe what factory owners care about most is stable quality, low operating cost and worry-free after-sales service. These are exactly our core advantages compared with other furnace suppliers.
First, we are a vertical manufacturer focusing on cylinder thermal processing equipment, not a general machinery trader. We have in-depth understanding of the quality inspection standards and pain points of gas cylinder production. All equipment upgrades are derived from actual factory production feedback, not theoretical design. Our equipment can effectively reduce the cylinder rejection rate to below 3%, helping customers save a lot of material costs.
Second, our equipment has ultra-low long-term operating costs. The high-efficiency energy-saving design greatly reduces power and gas consumption. The furnace lining and core heating components have a long service life, avoiding frequent replacement and shutdown maintenance. For long-term mass production, our equipment has a much higher cost-performance ratio than cheap ordinary furnaces.
Third, we provide customized solutions. Whether you need a large continuous assembly line furnace for mass production or a small batch trolley furnace for flexible processing, we can design and configure equipment according to your cylinder specifications, output requirements and factory site conditions.
Fourth, we provide full lifecycle after-sales support. We offer remote technical debugging, on-site maintenance guidance and spare parts supply services. Once the equipment fails, our technical team can respond quickly to avoid long-term production shutdown losses for customers.
Q1: What types of gas cylinders can this furnace process?A: It covers carbon steel, stainless steel and aluminum alloy gas cylinders, including LPG cylinders, medical gas cylinders, industrial high-pressure gas cylinders and hydrogen storage cylinders. It supports normalizing, annealing and tempering of all conventional pressure vessel cylinders.
Q2: What is the biggest difference between your furnace and ordinary heating furnaces?A: Ordinary furnaces only provide simple heating, with uneven temperature and uncontrollable cooling. Our dedicated furnace adopts cylinder-specific heating curves and staged cooling technology, which can completely release cylinder residual stress without damaging the metal structure, ensuring 100% compliance with international safety certification standards.
Q3: Is the equipment difficult to operate for new workers?A: We adopt intelligent CNC one-key operation. After presetting the parameters according to cylinder types, workers only need to complete feeding and unloading. The system automatically controls heating, heat preservation and cooling, with low operation threshold and no need for professional thermal processing knowledge.
Q4: How to reduce the operating cost of the heat treatment furnace?A: Our equipment comes with waste heat recovery and high-efficiency insulation design. Matching the automatic production line can reduce labor investment. Stable temperature control also reduces product scrap loss, which is the most effective way to reduce comprehensive production costs.
The global gas cylinder market maintains steady expansion, valued at USD 7.8 billion in 2025 and projected to hit USD 9.5 billion by 2035 at a 2.0% CAGR, driven by hydrogen energy, medical oxygen, industrial gas and residential LPG consumption. Regulatory authorities worldwide enforce stricter pressure vessel safety codes such as ISO 9809 and ASME, mandating standardized heat treatment to eliminate residual stress and stabilize metal microstructure.
Forging, deep drawing and welding during cylinder manufacturing generate uneven internal stress. Untreated cylinders face hidden risks including post-processing deformation, weld cracking and reduced fatigue resistance, which directly disqualify products from certification. As mass production lines replace small batch workshops, demand for dedicated Gas cylinder heat treatment furnaces surges. Manufacturers prioritize continuous, temperature-consistent furnace equipment to balance throughput, product compliance and energy cost control, forming a specialized thermal processing equipment segment with clear technical thresholds.
A gas cylinder heat treatment furnace is customized thermal processing equipment exclusively for seamless steel, aluminum and composite-lined pressure cylinders, executing normalizing, tempering, stress-relief annealing and solution treatment according to material grades. Its core working logic relies on precise thermal cycle control: heating workpieces to target temperatures (580–900°C for carbon steel, 1050–1100°C for stainless steel) with uniform heat distribution, fixed-duration heat preservation, and programmed slow cooling to regulate grain growth and release forming stress evenly.
Two mainstream heating architectures dominate the industry: gas-fired radiant tube furnaces for large-volume continuous lines, and resistance electric furnaces for small-scale flexible production. Circulating hot air fans eliminate temperature deviation within the chamber, limiting temperature fluctuation to ±5°C, a baseline requirement to avoid inconsistent mechanical performance across cylinder batches.
Standard continuous furnaces consist of five core modules: loading conveyor, preheating zone, constant-temperature heating chamber, slow cooling section and automatic unloading platform. The furnace shell uses thick carbon steel plate reinforced by channel steel to resist thermal deformation. Inner lining adopts dual-layer insulation: high-alumina refractory castables for the high-temperature contact layer, paired with aluminum silicate fiber cotton to cut heat loss and surface temperature rise.
Walking beam or roller conveying systems transport cylinders stably without collision or surface scratching. Control hardware adopts PLC multi-zone temperature split regulation, with real-time thermocouple feedback to adjust burner power or heating resistance automatically. Equipment manufacturing follows unified pressure vessel thermal equipment standards: all high-temperature pipelines undergo air tightness testing, and electrical systems integrate short-circuit and overheat protection for round-the-clock unmanned operation.
Three controllable furnace parameters directly decide finished cylinder safety qualification:
Temperature uniformity: Local hot spots over ±15°C trigger grain coarsening and brittleness; uneven cooling creates new residual stress leading to oval deformation.
Heating and cooling rate: Carbon steel cylinders require heating speed below 200°C/h and cooling speed under 150°C/h until 300°C; rapid temperature swings induce surface cracking.
Heat preservation duration: Calculated by wall thickness (1 hour per 25mm thickness, capped at 4 hours). Insufficient holding fails to remove forming stress; excessive heating weakens tensile strength of cylinder walls.
Auxiliary factors include furnace atmosphere control: unregulated oxidation causes surface decarburization, reducing cylinder pressure-bearing durability, so high-volume production lines add nitrogen protective atmosphere systems for high-precision cylinders.
Procurement teams should evaluate suppliers from four E-E-A-T-aligned dimensions to avoid unqualified thermal equipment:
First, industry-specific experience: Prior delivery records of full Gas cylinder production lines verify whether the manufacturer masters cylinder geometric heating balance, unlike general-purpose metal furnaces unsuitable for cylindrical hollow workpieces.
Second, compliance certification: Furnace systems must meet ISO, CE and local industrial energy efficiency standards, with complete temperature calibration reports and thermal cycle test data.
Third, after-sales and spare part supply: Continuous production lines cannot halt for long repairs; qualified suppliers maintain standardized global spare part inventory and remote PLC debugging support.
Fourth, total cost of ownership: Compare thermal efficiency, power/gas consumption and lining service life rather than only initial purchase price, as energy expense accounts for over 60% of long-term operation cost.
Traditional batch trolley furnaces expose obvious drawbacks for cylinder production: low hourly output, unstable temperature repeatability and high labor input. Many small manufacturers previously repurposed general metal heat treatment ovens, resulting in 12–18% cylinder rejection rates due to uneven hardness and deformation.
Modern dedicated gas cylinder furnaces resolve these pain points through targeted design: automatic feeding-unloading cuts manual labor by 70%; multi-zone temperature control lowers rejection rates below 3%; sealed circulating chambers reduce fuel consumption by 22–30% versus outdated open-type furnaces. For thin-wall aluminum and hydrogen storage cylinders, customized low-deformation walking beam fixtures prevent workpiece bending during heating cycles.
This furnace equipment serves full-spectrum Gas Cylinder Manufacturing plants: residential LPG cylinder factories (6kg–50kg steel tanks), medical oxygen and nitrogen cylinder production lines, high-pressure hydrogen 70MPa seamless cylinder workshops, and industrial specialty gas aluminum cylinder manufacturers. Regional industrial clusters in Southeast Asia, the Middle East and Eastern Europe, which expand LPG infrastructure rapidly, are major purchasers of complete continuous furnace lines. Small-scale repair and recertification factories adopt compact trolley-type annealing furnaces for batch stress relief of recycled cylinders.
Three clear development directions shape gas cylinder heat treatment furnace technology:
Full digital intelligence: Cloud-connected temperature data recording, automatic thermal cycle parameter switching for mixed cylinder specifications, and AI fault prediction to reduce unplanned downtime.
Energy-saving and low-carbon upgrades: Waste heat recovery systems capture cooling section residual heat for preheating, cutting carbon emissions to meet global factory decarbonization targets. Induction heating furnaces with over 96% power factor gain wider adoption for low-thickness aluminum cylinders.
Compatibility with new material cylinders: R&D of adjustable atmosphere furnaces matching composite-wrapped hydrogen cylinders, solving thermal processing challenges for multi-layer mixed material pressure vessels as clean energy storage demand expands.
