Product Overview

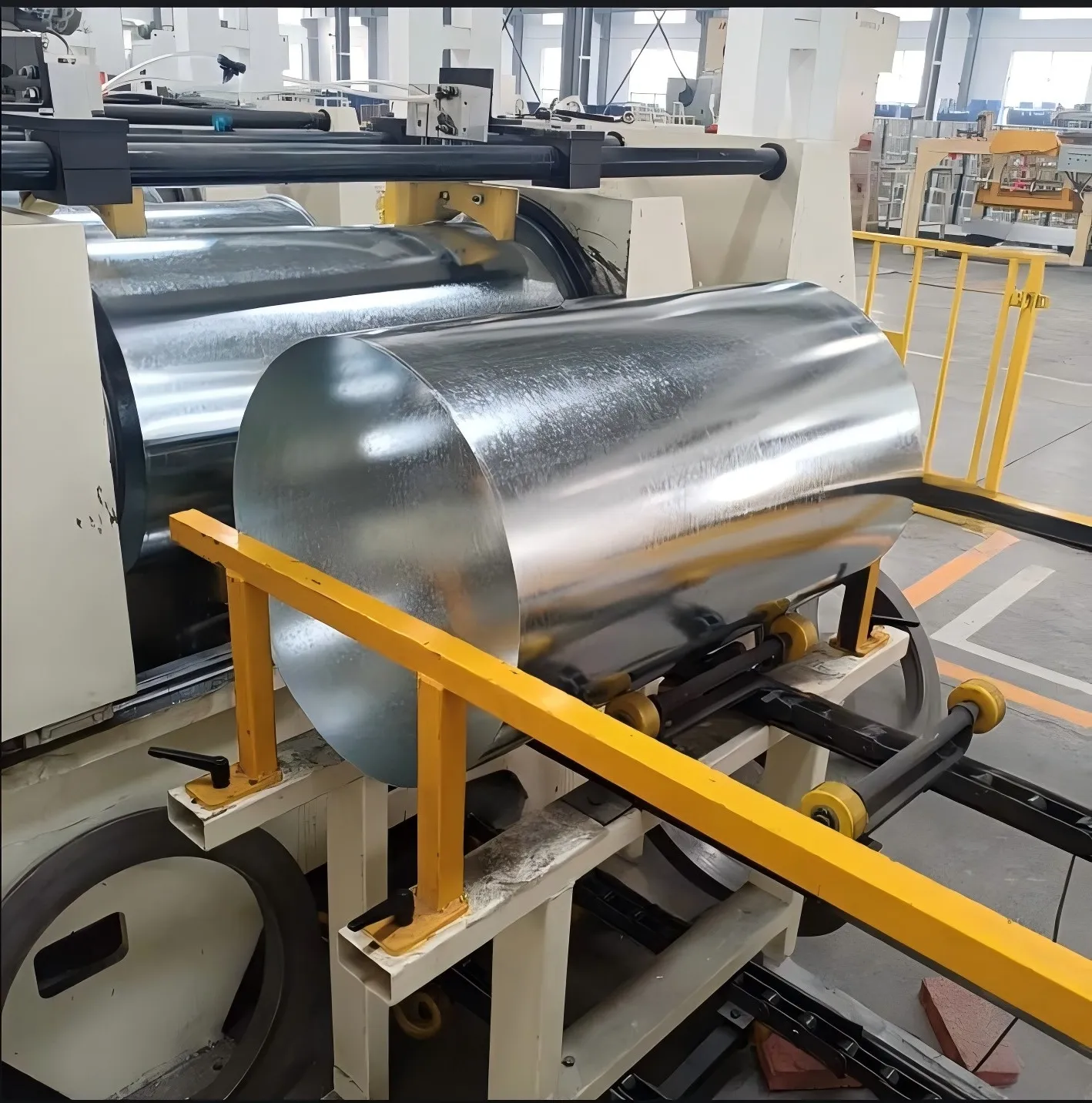

A Plate rolling machine, also known as a plate bending roll or Roll bending machine, is industrial equipment designed to shape flat metal sheets into cylindrical, conical, or curved profiles through a continuous rolling process.This versatile forming equipment applies controlled pressure through hardened steel rollers, gradually bending the material to achieve the desired curvature.Our plate rolling machines are engineered for precision, efficiency, and longevity. With configurations ranging from three-roll symmetrical designs to advanced four-roll hydraulic systems, we offer solutions tailored to your specific production requirements.
Key Features & Advantages
1. Superior Design & Engineering
Precision-Ground Rollers: All rollers are hardened to HRC 45–50 and precision-ground to ensure consistent bending quality and long service life.Rollers are supported by heavy-duty self-aligning bearings to handle extreme loads.
Hydraulic vs. Electric Drive: Our hydraulic models deliver consistent force for thick, high-tensile materials. For ultra-precision work, our all-electric e-POWER machines offer quiet operation, lower maintenance, and energy efficiency through an intelligent start-stop function that consumes power only when actively rolling.
Robust Construction: Welded steel baseboard and machine frames provide exceptional rigidity, minimizing deflection during heavy-duty operations. CNC-machined components ensure perfect alignment of all moving parts.
Variable Cambering Technology: Advanced models incorporate variable cambering technology to compensate for deflection and prevent barrel effect, ensuring perfectly straight cylindrical sections even with wide plates.
2. Operational Efficiency
Four-Roll Advantage: Unlike three-roll single-pinch designs, our four-roll machines allow the operator to introduce the plate horizontally, square it instantly against the back roll, and complete pre-bending and rolling in a single pass. This can increase productivity by 50–80% compared to three-roll machines.
Fast Rolling Speed: Standard rolling speed is 4 m/min, with high-performance models reaching up to 10 m/min.
CNC & AI Automation: Equipped with advanced CNC controls—and optional AI-driven systems like iRoll eXtreme—our machines can read radii in real time, make automatic adjustments, and execute complex multi-radius bends with minimal operator input.
3. Versatility
Our Plate Rolling Machine can process not only flat sheets but also:
Structural sections (angles, channels, beams)
Round bars and tubes
Conical shapes (via hydraulic inclination of side rollers)
Ovals and custom profiles
Working Principle and Process
The fundamental principle of roll bending involves feeding a flat metal plate between rotating rollers that apply progressive pressure to induce plastic deformation.The curvature achieved depends on the relative position of the rollers, material thickness, and mechanical properties.Operators typically perform the bending process through multiple passes, gradually adjusting the upper roller position until the desired radius is achieved.This incremental approach minimizes material stress and reduces the risk of cracks or fractures.
A critical step in plate rolling is pre-bending the plate edges to eliminate flat sections that cannot be formed during the main rolling process. Four-roll machines excel at this task, enabling precise edge pre-bending before full rolling begins.
Applications and Versatility
Plate rolling machines accommodate a diverse range of materials, including carbon steel, stainless steel, aluminum, and various alloys.They can process plates of varying thicknesses and widths, making them suitable for fabricating storage tanks, pressure vessels, pipelines, wind turbine towers, ship hulls, structural arches, and architectural components.Specialized configurations enable the rolling of conical shapes and profiles such as angles and channels.With proper maintenance, a high-quality plate rolling machine can deliver reliable service for decades, making it a strategic investment for metal fabrication operations worldwide.
Frequently Asked Questions
What is the minimum rolling diameter a machine can achieve?
The minimum rolling diameter depends primarily on the upper roll diameter and material properties.
Generally, the minimum working diameter is greater than the upper roll diameter by a coefficient that
accounts for spring-back.
Can a plate roll handle different metals?
Yes, most plate rolls can process carbon steel, stainless steel, aluminum, copper, and various alloys.
However, machine capacity must be matched to the specific material type and thickness.
What is pre-bending and why is it important?
Pre-bending eliminates flat sections at the ends of the plate that cannot be formed during the main
rolling process. This ensures a consistent curve across the entire length of the finished workpiece.
what is the difference between rolling thickness and pre-rolling thickness?
Pre-rolling thickness refers to the material thickness that can be pre-bent at the plate edges. This is
typically 80% of the maximum rolling thickness.
Do I need a CNC plate roll for small batches?
Not necessarily. For low-volume or simple jobs, manual or hydraulic machines may be sufficient.
CNC adds value primarily for complex, repetitive tasks requiring high repeatability.
