The Small Change That Makes Steel Drums Much Stronger

I remember visiting a steel drum factory that kept having problems with their open-top drums. The lids would feel loose after

 sealing, and occasionally, during stacking, the top of the drum would deform slightly, causing the lid to pop off. They’d

tried different steel grades, thicker material, even changed their seaming rollers. Nothing worked. Then someone suggested they look at their necking process. They didn’t have one.

Here’s the thing about steel drums that a lot of manufacturers don’t fully appreciate. A straight cylinder is strong, but a

cylinder with a slightly reduced diameter at the top? That’s much stronger. The neck, or the slight reduction in diameter at

the mouth of the drum, creates a mechanical advantage that helps the lid stay on under pressure and keeps the drum from

deforming when you stack them three or four high. A Steel Drum Necking Machine is what creates that advantage. And if

you’re making open-top drums or any drum where the lid has to stay put under heavy stacking loads, a necking machine

isn’t optional—it’s essential.

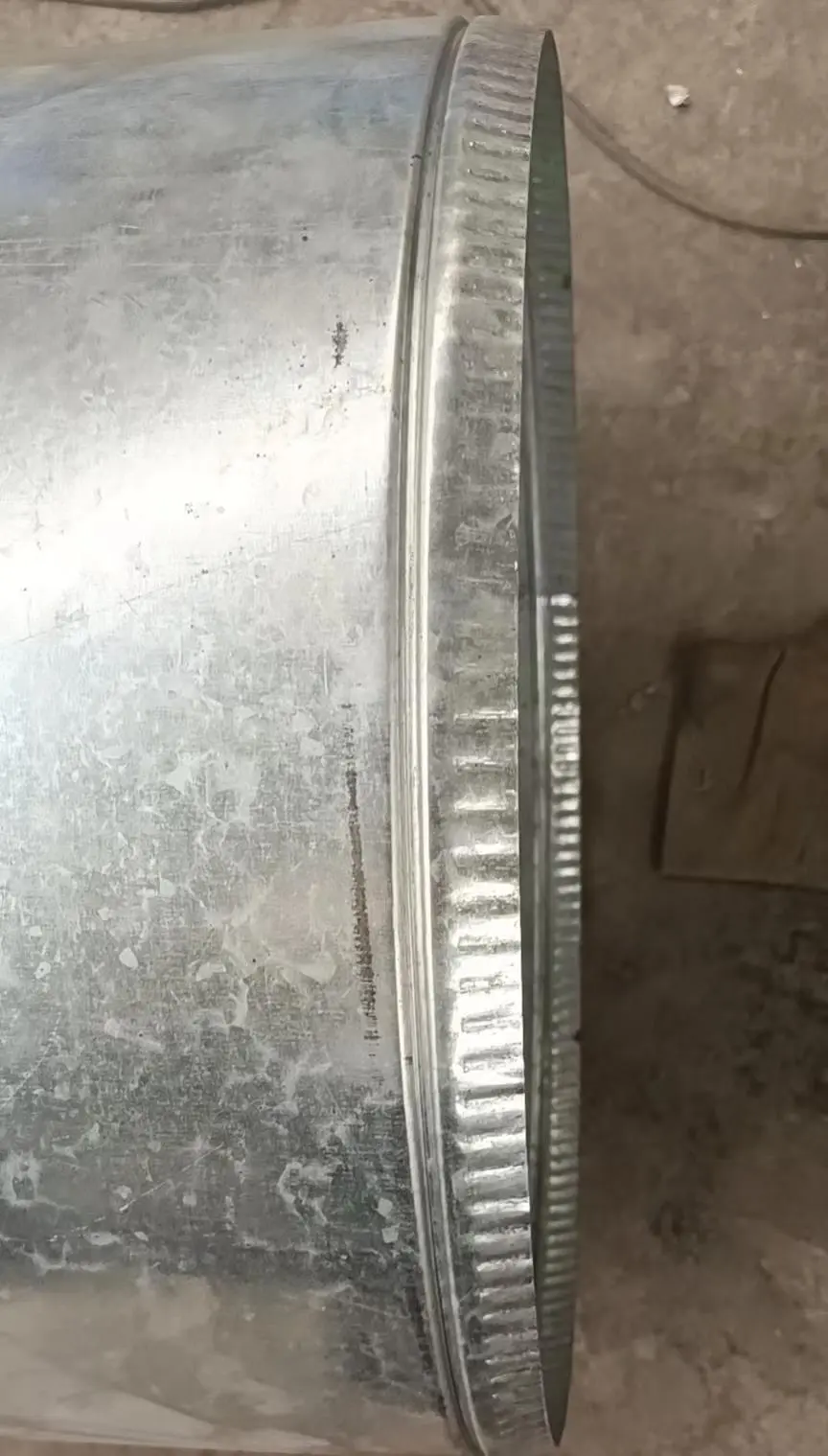

Here’s what a steel drum necking machine actually does. It takes a finished drum body and reduces the diameter of the

top end—usually by about 5 to 8 millimeters, depending on the drum design. That reduction is what lets the lid fit securely

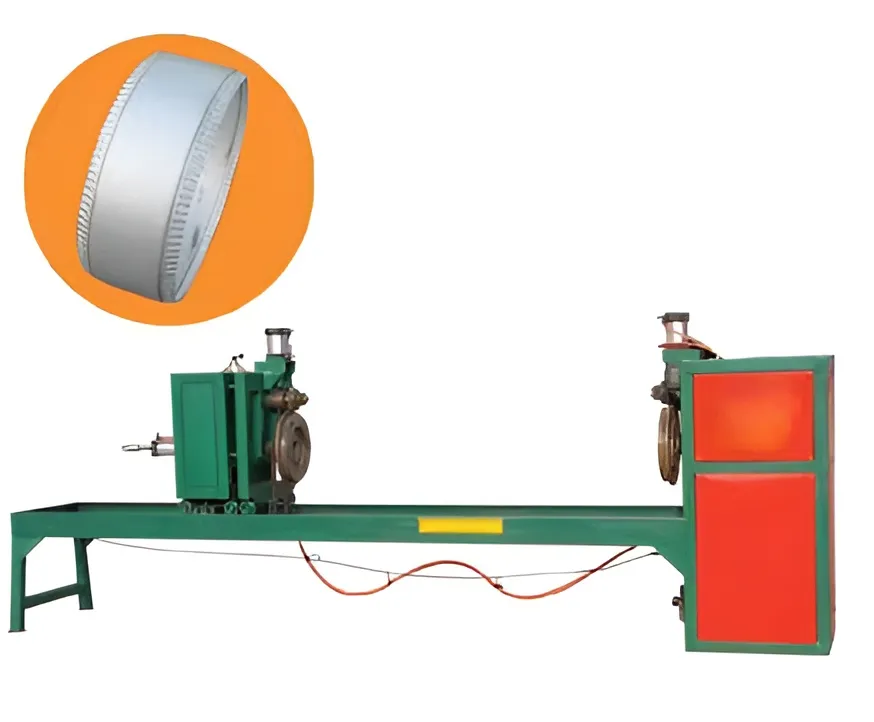

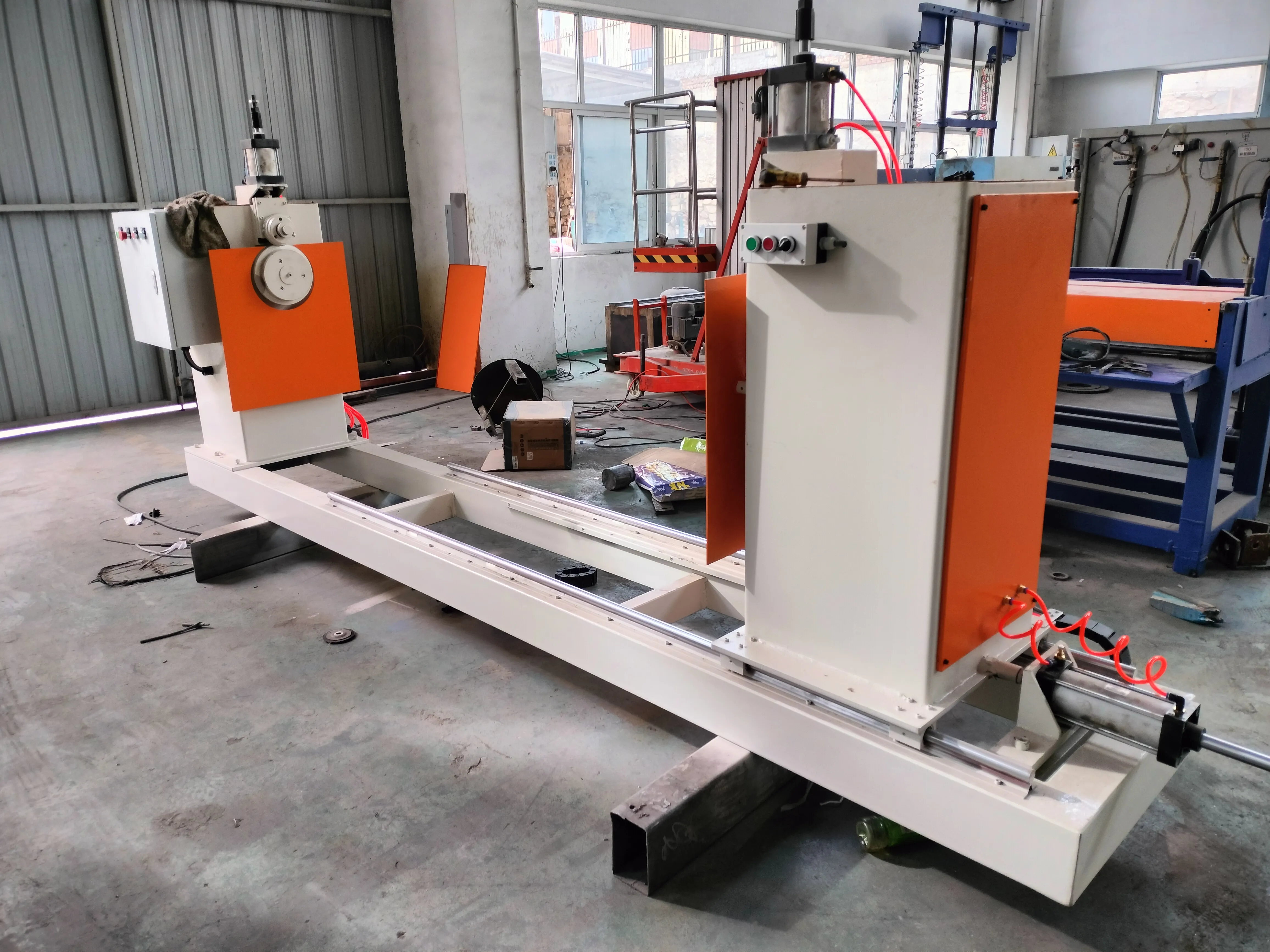

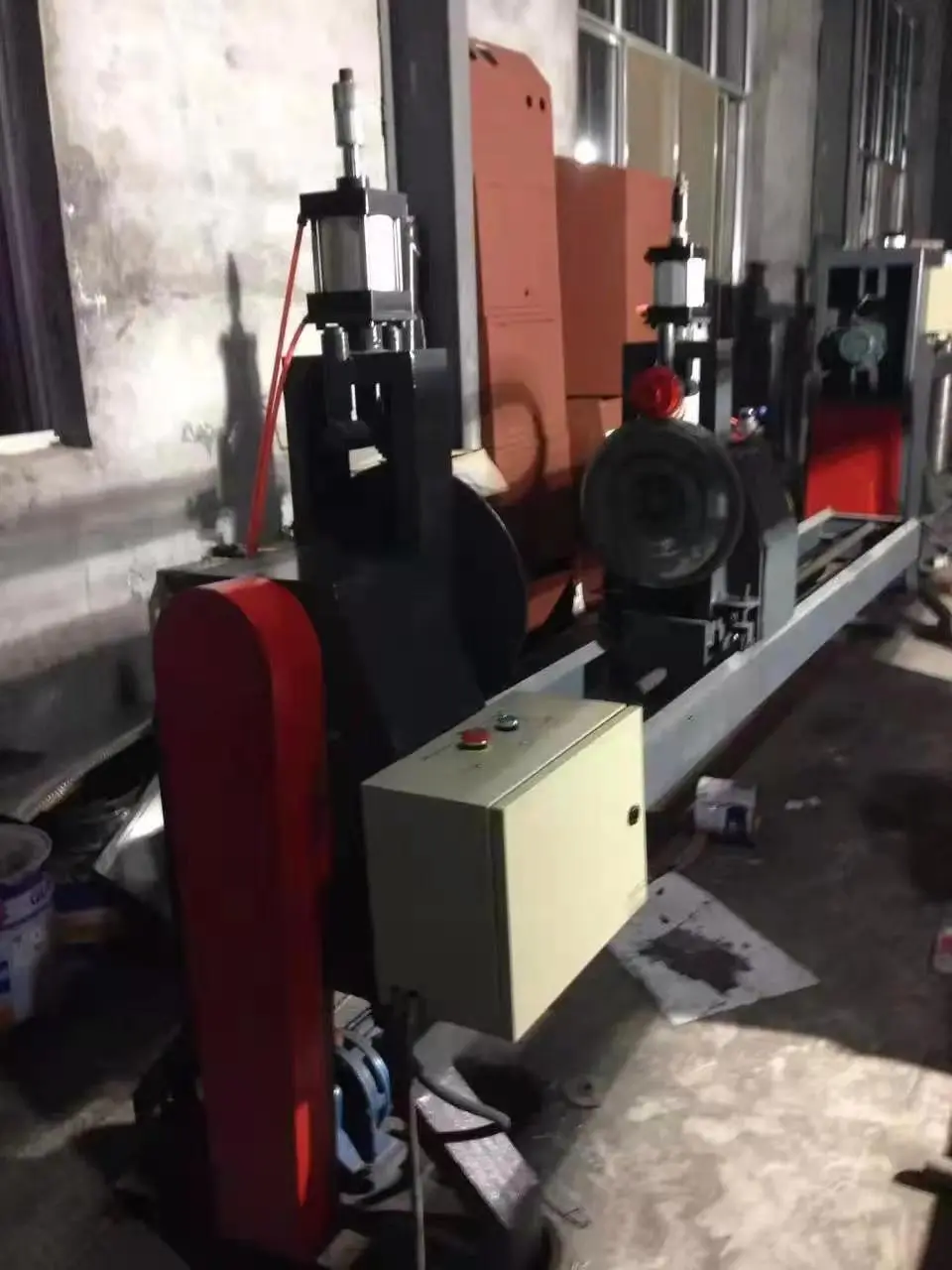

and creates a positive lock when the seaming rollers do their work. The machine itself is usually a horizontal design with a

motorized main spindle that rotates the drum while a necking roller presses inward against the rotating drum. The roller is

mounted on a slide mechanism that moves radially—either driven by a cam or a hydraulic cylinder—and applies the force

gradually as the drum rotates, forming a smooth, uniform neck around the entire circumference.

Now, if you’re looking at necking machines for your steel drum production line, you’ve got a few choices. The first is a

standalone necking machine. This is a dedicated machine that does nothing but necking. It’s a good choice if you’re

running a high-volume line where necking is a bottleneck, or if you’re producing drums with complex neck geometries

that need dedicated tooling. Standalone machines tend to be faster and more consistent because they’re optimized for

one task.

The second option is a combination machine that does necking and flanging in one pass. These machines have multiple

tooling heads on a single platform. The drum goes in, gets necked, then flanged, then comes out ready for the seamer.

Combination machines save floor space and reduce handling because you’re not moving the drum from one machine to

another. The downside is that they’re more complex to set up and tooling changes take longer.

When you’re evaluating a necking machine, here’s what I look for. First, the force control. Necking is a forming

operation—you’re moving metal, not cutting it. If you apply too much force too quickly, you’ll wrinkle or tear the metal.

If you apply too little, you won’t get a consistent neck size. A good necking machine will have either a hydraulic system with

 adjustable pressure or a servo-driven mechanism that lets you control the feed rate precisely. Some of the newer machines

use cam-driven rollers with a programmable stroke profile, which gives you even more control over how the metal flows.

Second, the tooling. The necking roller is the part that actually contacts the steel, and it’s subject to wear. Over time, the

roller surface can become uneven, which leads to inconsistent neck sizes. A well-designed machine will have rollers that are

easy to replace or resurface. Look for machines where the roller is mounted on a quick-change spindle so you can swap it

out in minutes instead of hours.

Third, the automation level. A semi-automatic necking machine requires an operator to load the drum, start the cycle, and

unload it. That’s perfectly fine for a medium-volume line. But for high-volume production, you want a fully automatic

machine with automatic loading and unloading. Some machines even include a conveyor feed system that takes drums

directly from the welding station and delivers them to the necking station without manual handling.

Here’s a practical tip I picked up from a factory manager who ran necking machines for over 10 years: lubricate the necking

roller. A dry roller will create more friction, which can cause galling on the steel surface and shorten the roller’s life. A light

coat of forming lubricant—nothing fancy, just a standard drawing compound—reduces friction and gives you a smoother finish.Some machines have a built-in lubricator that applies the compound automatically, which saves the operator the trouble.

One more thing I’ve learned from watching necking operations in real factories: pay attention to the drum rotation speed.

If the drum rotates too fast, the roller can’t form the neck evenly. If it rotates too slow, you’re wasting cycle time. The

right speed depends on the steel thickness and the amount of reduction you’re making. A good rule of thumb is to start at

a moderate speed and adjust based on the finish quality. If you see ripples or irregularities, slow it down. If the neck is

smooth and consistent, you can speed it up.

At the end of the day, your steel drum necking machine is what gives your drums the strength to survive stacking and

shipping. It’s not the biggest or most expensive piece of equipment on your line, but it’s one of those machines that,

when it’s working right, nobody notices. And when it’s not working right, everyone notices. I’ve seen necking problems

cause everything from loose lids to collapsed drums in transit. And that’s the kind of quality issue that costs you customers.

 So take the time to choose the right machine, maintain it properly, and give your drums the neck they need to stay strong.
