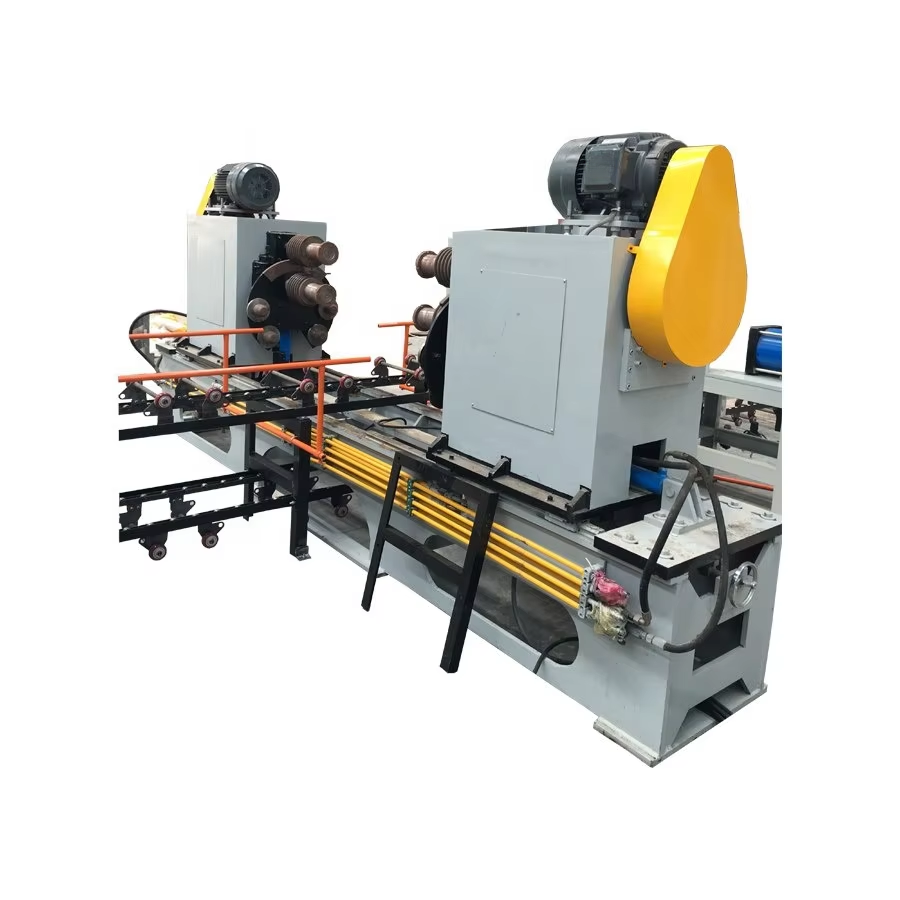

The Steel drum corrugating machine: Engineering Principles and Production Line Integration

Industry Background and Market Demand

Steel drums remain the dominant packaging solution for industrial liquids, chemicals, petroleum products, and hazardous materials. The 55-gallon (208-220 liter) steel drum, standardized under ISO 15750, represents the most widely manufactured industrial container globally. Within the steel drum production line, the corrugating machine performs a specific function: forming circumferential reinforcement ribs (corrugations) on the drum body that provide structural strength against stacking loads and vacuum collapse .

Market demand for corrugating equipment tracks directly with steel drum consumption patterns. Global drum manufacturers including Greif (USA), Mauser (Germany), and JFE (Japan) maintain continuous demand for corrugating machinery as part of their production line replacements and capacity expansions . The Asia-Pacific region, particularly China, has developed substantial manufacturing capability for drum-making equipment, with documented installations across 28 Chinese provinces and export to Southeast Asia, the Middle East, Africa, and South America .

A significant trend driving corrugator demand is the industry-wide push toward lighter gauge steel. Manufacturers increasingly use 0.8 mm to 1.0 mm sheet steel rather than the traditional 1.2 mm, reducing material costs and drum weight. However, thinner steel requires more sophisticated corrugation patterns to maintain structural performance—a trade-off that directly affects corrugating machine design specifications .

Core Concept: Corrugation as Structural Reinforcement

The corrugating machine creates circumferential ridges and grooves on the cylindrical drum body. These corrugations serve three engineering functions: increasing axial compression strength for stackability, providing resistance to external pressure (vacuum collapse resistance during liquid withdrawal), and improving handling characteristics by reducing surface slippage.

Two distinct corrugation patterns dominate the industry. The traditional "W-style" bead design features two main corrugations dividing the drum into top, middle, and bottom sections, with shallower beads at the ends. More recent cluster-style designs group multiple identical corrugations together, creating a pattern where each corrugation has substantially identical shape and size within a cluster . The cluster configuration, developed through research by Greif International Holding, uses peak and valley radii typically between 6-12 mm with a peak-to-valley depth of 2.5-6 mm and corrugation pitch of at least 15 mm .

Corrugation formation occurs after the flat steel sheet has been cut to size, rounded into a cylinder, and seam welded. The cylindrical drum body then enters the corrugator, where mechanical rollers or a forming die exert radial pressure to create the circumferential profiles. Two primary methods exist: rolling processes where profiled rollers travel around the drum circumference, or die forming where the drum is placed in a segmented mold and expanded under pressure .

Product Structure, Materials, and Manufacturing Processes

Machine architecture varies by production speed. Low-speed corrugators (1-2 drums/minute) typically use manual loading with hydraulic clamping and mechanical indexing. Medium-speed machines (5-6 drums/minute) employ semi-automatic loading with pneumatic positioning and PLC-controlled cycle sequencing. High-speed corrugators (7-10 drums/minute) integrate fully automatic loading/unloading with servo-driven roller positioning and real-time diameter compensation .

Frame construction uses heavy steel plate welded sections, stress-relieved through tempering to eliminate internal stresses that could affect alignment precision. The forming frame typically uses channel steel construction, with bed plates machined after welding to ensure roller path parallelism within 0.1 mm over the drum height .

Roller and tooling materials determine corrugation quality and tool life. Roll shafts are manufactured from 45# steel or manganese steel, heat-treated through quenching and tempering. Forming dies and shearing punches use Gr12 tool steel (D2 equivalent), which provides wear resistance for high-volume production. Hard chrome plating on roller surfaces extends service life when processing galvanized or pre-coated steel .

Drive systems on modern corrugators integrate servo motors for positional accuracy and programmable logic controllers (PLC) for cycle sequencing. Hydraulic systems provide the high forces required for corrugation forming, with typical operating pressures of 140-210 bar. The synchronization between roller movement and drum rotation requires closed-loop control to ensure continuous corrugations without step marks .

Critical Factors Affecting Quality and Performance

Steel gauge and material properties directly impact corrugation consistency. Thicker steel (1.0-1.2 mm) requires higher forming forces but produces stable corrugations with less spring-back. Thinner material (0.6-0.8 mm) demands precise roller gap control to avoid tearing or wrinkling. The steel's tensile strength and elongation characteristics affect how sharply corrugations can be formed without work hardening cracks .

Roller alignment and wear represent the most common quality issue. Misalignment between upper and lower rollers produces uneven corrugation depth around the drum circumference. Roller wear, particularly at the peak-forming radii, gradually reduces corrugation definition and may cause localized thinning. Replacement intervals typically range from 50,000 to 100,000 drums depending on steel gauge and coating type.

Cycle timing consistency affects production line synchronization. In high-speed lines, the corrugator must complete its cycle within the takt time established by the seam welder and downstream flanging stations. Variability exceeding 10% creates bottlenecks or requires buffer conveyors.

Tool steel heat treatment quality determines the interval between die refurbishments. Properly hardened tooling (58-62 HRC with sufficient depth of case) resists abrasive wear from steel mill scale and galvanized coatings. Undertreated tooling develops radius rounding within 10,000-15,000 cycles, producing visibly different corrugation profiles .

Common Problems and Industry Pain Points

Corrugation depth inconsistency manifests as variations in the peak-to-valley height around the drum circumference. This problem typically traces to worn roller bearings, loose tooling mounts, or variations in drum body straightness from the rounding process. Field service records indicate that 60% of depth variation complaints resolve after roller bearing replacement and tooling re-torquing.

Surface marking and coating damage occurs when roller surfaces are contaminated with steel debris or when forming forces exceed the coating's elongation limits. Painted or galvanized steel requires polished roller surfaces and reduced forming speed. Some installations use polyurethane-coated rollers for pre-painted materials.

Spring-back in thin-gauge steel causes corrugations to partially relax after the rollers retract, reducing effective depth by 0.2-0.4 mm. Machine operators must compensate by over-forming, typically increasing roller penetration by 15-20% beyond the desired final depth.

Changeover time between drum sizes represents a productivity loss. Changing from 208-liter to 100-liter drums requires roller repositioning or tooling replacement, and in some cases, different forming heads. Modern corrugators feature quick-change tooling systems with preset positions, reducing changeover from 2-3 hours to 20-30 minutes.

Corrugation pitch accuracy affects how drums stack in automated filling lines. Inconsistent spacing between corrugations—particularly when transitioning between clusters—can interfere with conveyor guides and automated handling equipment. Precision servo drives with encoder feedback have largely resolved this issue on newer machines .

Supply Chain and Supplier Selection Criteria

The corrugating machine market includes three tiers of suppliers. Global leaders include companies with documented supply to Greif, Mauser, and JFE—these manufacturers typically provide complete production lines with certified performance . Regional manufacturers in China, India, and Turkey offer lower-cost alternatives suitable for small to medium-scale production. Specialty rebuilders remanufacture existing machines with updated controls.

Supplier evaluation criteria should include:

Production speed validation through customer references at claimed output rates. A supplier claiming 8 drums/minute should provide installation examples where sustained production achieves this rate.

Material certification for all steel components, including mill certificates for frame plates and tool steel certification with heat treatment records.

Spare parts availability with documented lead times for wear items (rollers, bearings, seals). Suppliers who maintain local stocking arrangements reduce downtime risk.

Installation and training scope should include on-site commissioning, operator training, and documented maintenance procedures.

Application Scenarios and Industry Case Examples

Chemical drum production represents the largest application segment. A Chinese drum manufacturer operating since 1985 equips over 150 drum plants with production lines including corrugators, achieving cutting precision of ≤0.5 mm length tolerance and production capacity of 3-9 drums per minute . The integrated line handles steel coil decoiling, leveling, cutting, corrugation forming, and painting.

Food-grade drum manufacturing requires corrugators with stainless steel tooling and food-grade lubricants. A European installation documented the transition from W-style to cluster-style corrugations, enabling steel gauge reduction from 1.0 mm to 0.8 mm while maintaining vacuum collapse resistance—a material saving of 20% per drum .

Reconditioning and remanufacturing creates secondary demand for corrugating equipment. Drums returned from customers are crushed, re-rounded, and passed through corrugators to restore profile before repainting. This application requires machines capable of handling drums with varying degrees of prior deformation.

Current Trends and Future Development Directions

Integrated corrugation and W-bevel forming on a single machine represents a recent development. Manufacturers now offer combined machines that produce both the primary corrugations and the W-bevel (wedge-shaped reinforcement) in one pass, either separately or simultaneously . This integration reduces floor space requirements and eliminates inter-stage handling.

Thinner steel capability continues to drive machine development. Target gauges of 0.6 mm for standard drums and 0.4 mm for light-duty applications require redesigned rollers with larger radii to distribute forming stresses and prevent tearing.

Digital monitoring and predictive maintenance are entering the corrugator market. Vibration sensors on roller bearings, load cells on forming cylinders, and vision systems for corrugation inspection provide real-time quality data. One supplier reports that predictive models can forecast roller replacement needs within ±200 drum accuracy.

Energy efficiency improvements focus on hydraulic system optimization. Variable-speed pump drives and accumulator-assisted rapid traverse reduce energy consumption by 30-40% compared to fixed-displacement pump systems.

The steel drum corrugating machine, while mature in its basic principles, continues to evolve in response to material cost pressures and quality requirements. For production managers, the selection between W-style and cluster-style corrugation patterns—and between rolling and die forming methods—remains the key technical decision affecting drum performance and production efficiency.
